Part 58. Making brakelines

Since all the brake parts on the car are new we decided to go for new lines also. So, new piping all the way through:

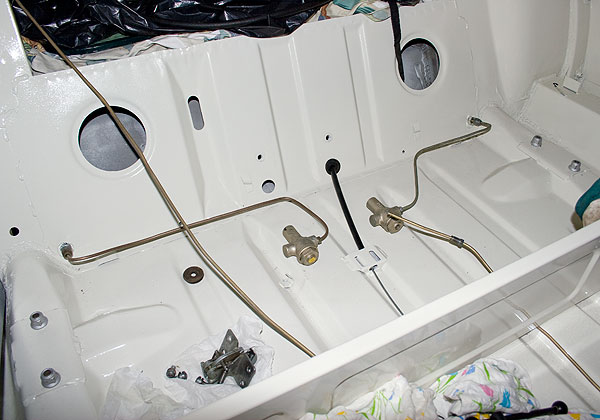

brakeline_1
New lines, but they have no flaring or nuts yet.

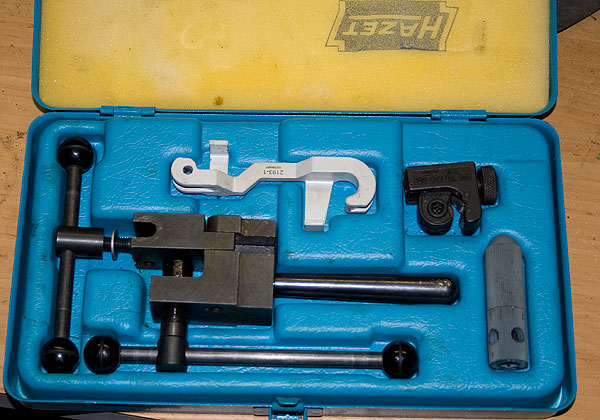

toolset
Flaring tools – look complicated but actually very easy to use.

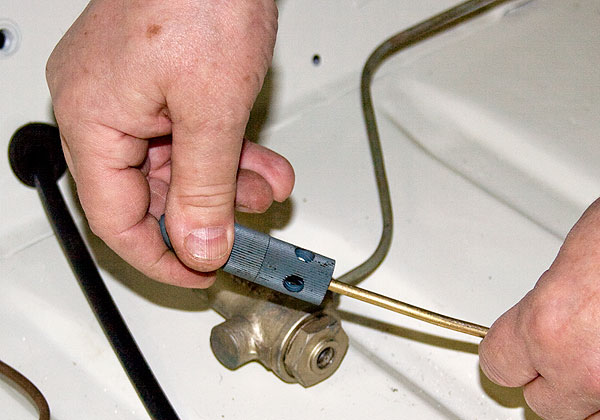

brakeline_2
First the end of the line is cleaned with the grinding tool.

brakeline_3
The line now has a clean and slightly rounded end.

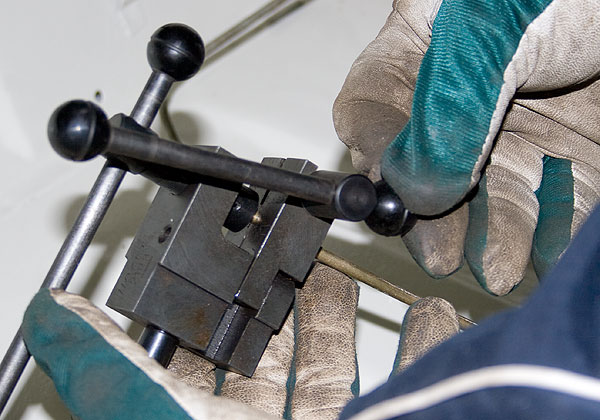

brakeline_4
The line is inserted and clamped secure. Then the other lever is turned until the line end is fully formed.

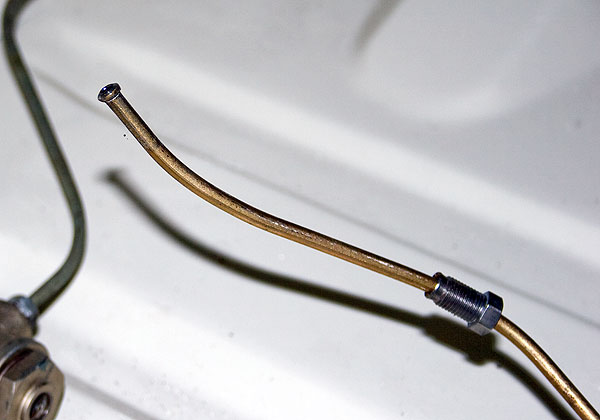

brakeline_5
Line end now has  proper flaring.

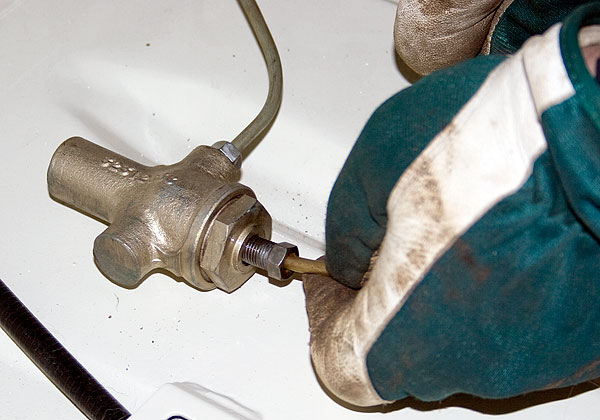

brakeline_6

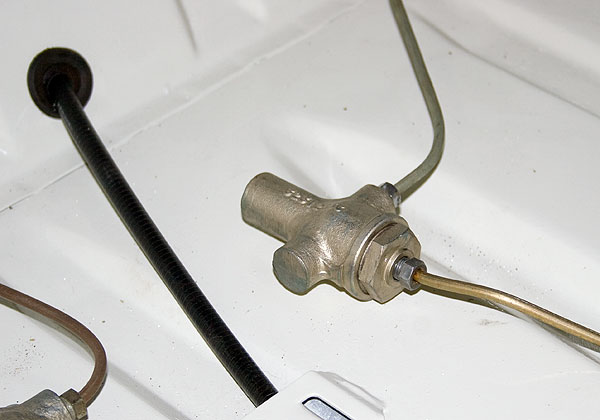

brakeline_7

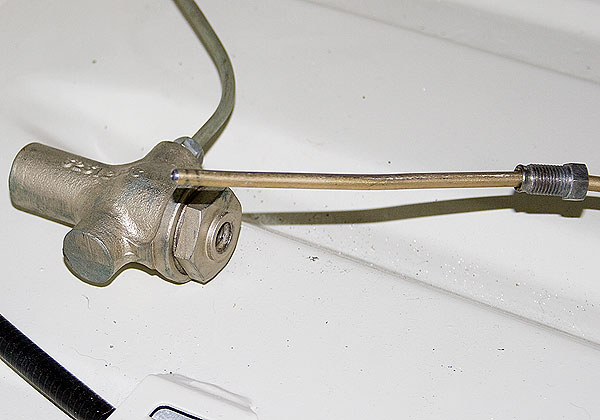

The line attached to the brake force limitter.

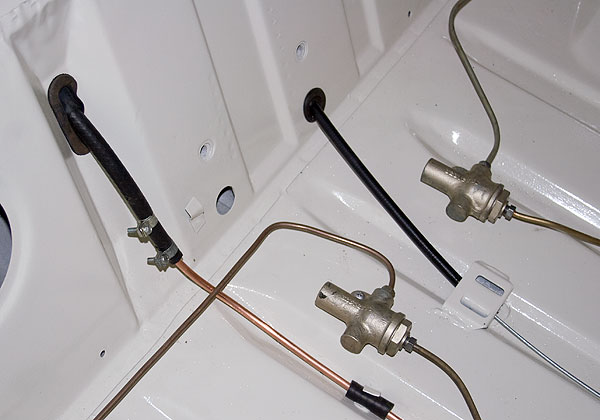

ready
All done!
