Part 10. Expansion chamber

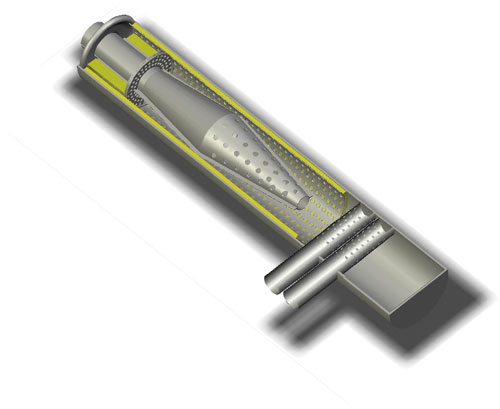

About the expansion chamber

etupontto

As I mentioned earlier, I got hold of an old Sport -exhaust system. I know that new ones are availlable from the Swedish Saab Club, but I wanted to see how they are made. And perhaps make one for myself.

expansion101

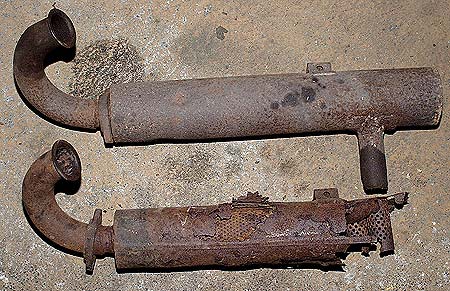

Outwards the standard and sport exhausts look pretty much the same, but the sport version has double exhaust pipes (above).

sport-expansion_chamber

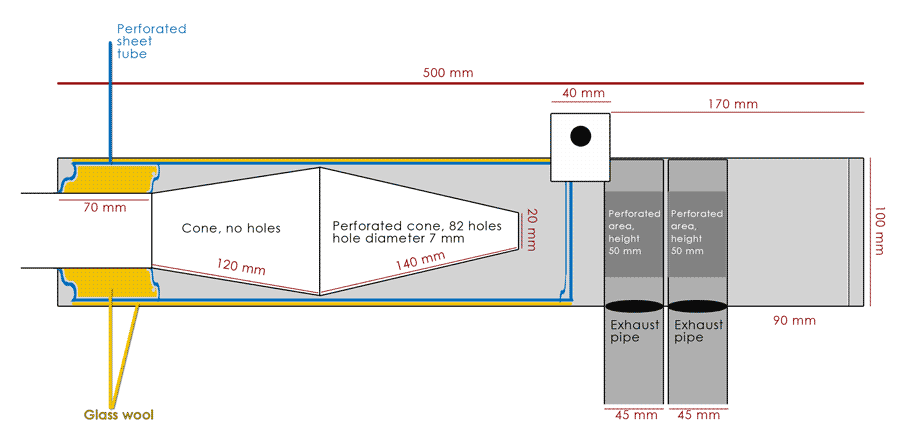

This is a blueprint that shows the inner structures, klick it to see it bigger.

The casing has two layers. An outer layer of sheet metal and an inner layer of perforated sheet metal. Sandwitched between those, is a thin layer of glass wool, serving as the muffler material.

expansion102

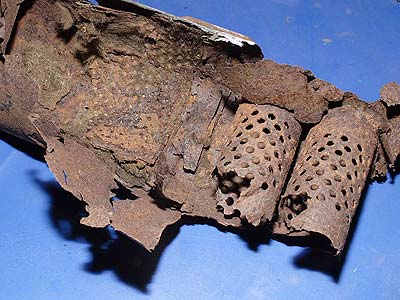

The double exhaust pipes and the perforated tube.

expansion104

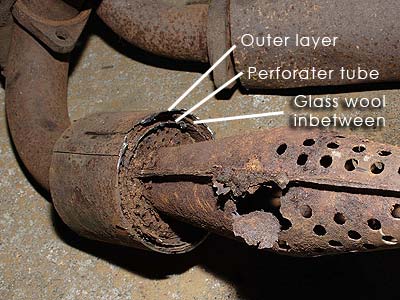

A different view.

expansion104b

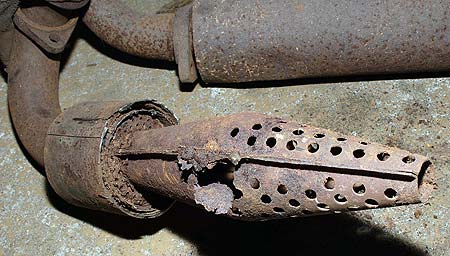

Tip of the expansion chamber has hole of about 20mm diameter.

expansion112

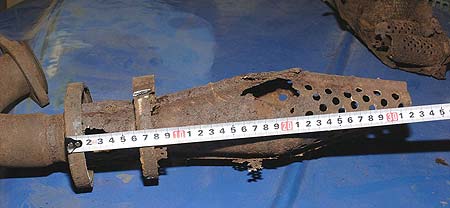

The diffuser cone takes up over half of the space inside.

expansion107

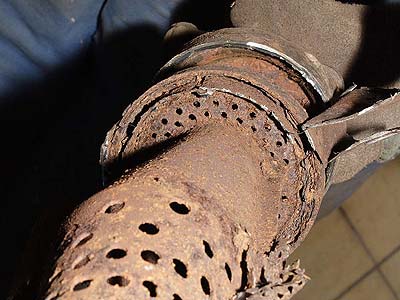

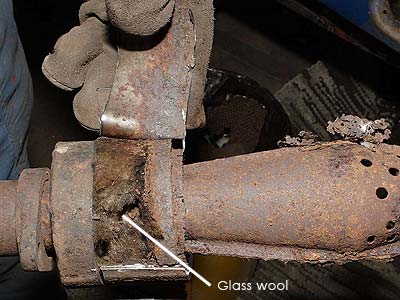

The starting point of the diffuser (pic above) is also perforated and the space between it and the inlet end of the muffler is filled with glass wool (pic below).

expansion106

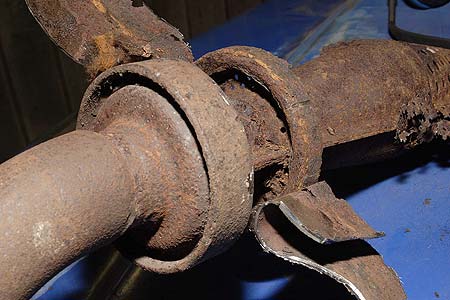

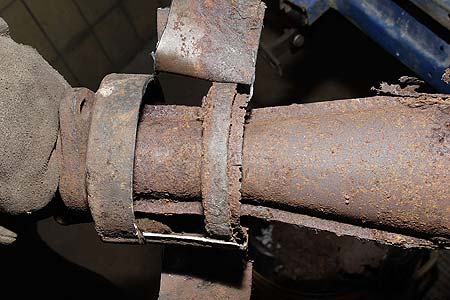

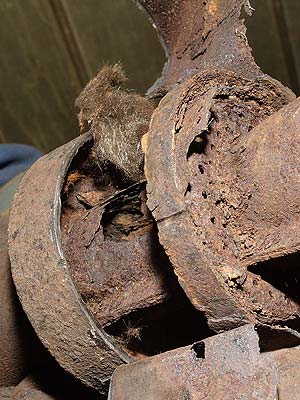

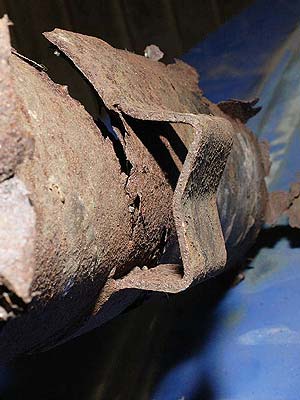

More shots of the structure:
expansion109

expansion110

expansion111

expansion114
The attachment iron that secures the expansion chamber to the engine block.

expansion115

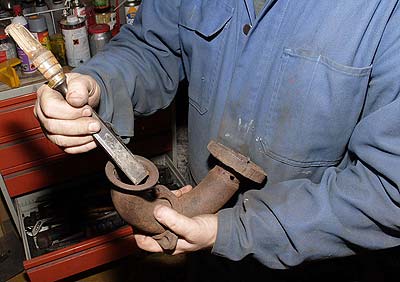

The curved part is made of so thick material, that one could propably still use it.

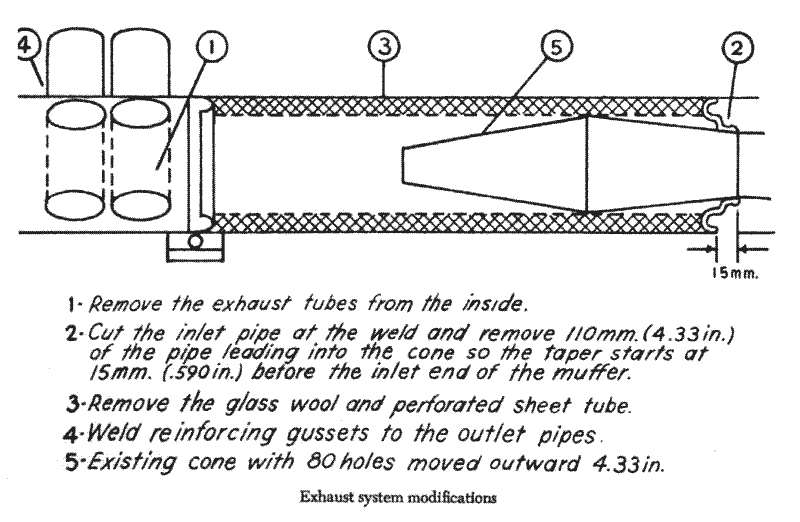

Here’s what the Chilton manual says about modifying the exhaust system for more power:

img_2598
Click the image to see it bigger.
