Saab 96 V4 Rally – Fitting the Saab 99 radiator

Fitting a Saab 99 radiator to the V4 isn’t quite as straightforward as one might think. First of all the attachment points are different and you need to cut stuff out of the way, but the radiator needs some modification also. There’s more than one way to do this, the Works cars had a different system, but here’s what we did:

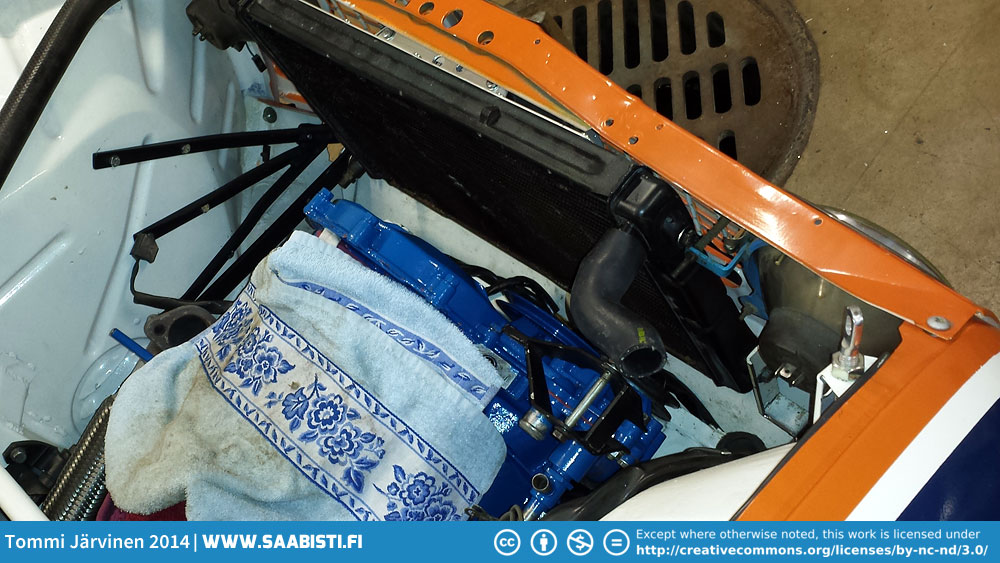

That's a tight spot. There's not a whole lot of room for the radiator and the outlet.
That’s a tight spot. There’s not a whole lot of room for the radiator and the outlet.

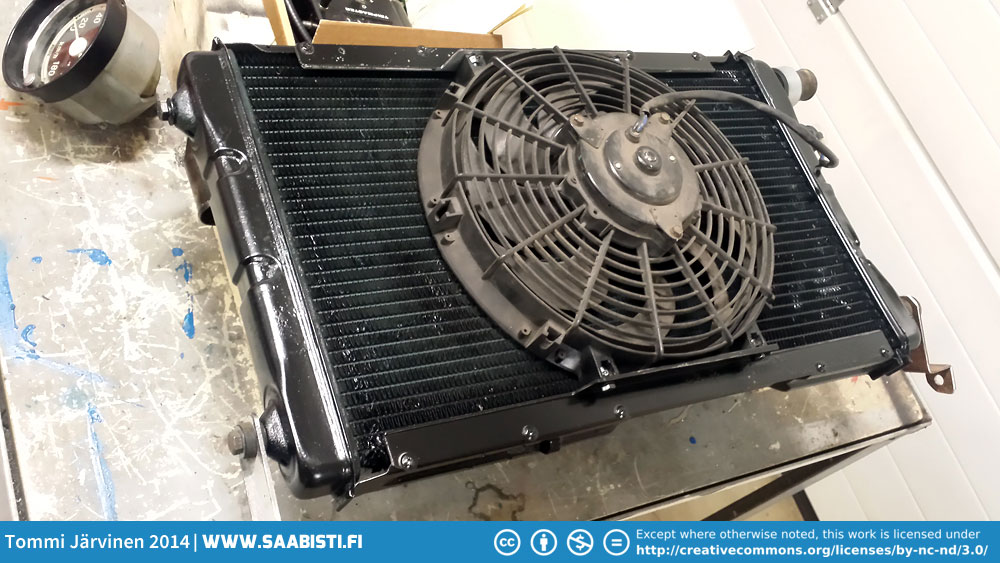

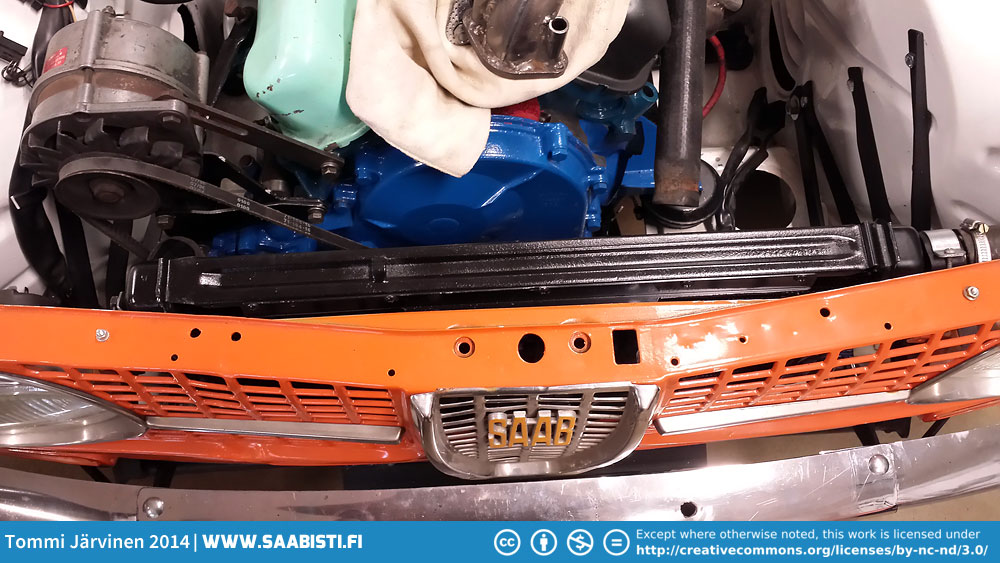

A Saab 99 bigger radiator will replace the stock V4 radiator.
A Saab 99 bigger radiator will replace the stock V4 radiator.
Here's the problem. The normal Saab 99 outlet would point the hose right into where the alternator should go.
Here’s the problem. The normal Saab 99 outlet would point the hose right into where the alternator should go.

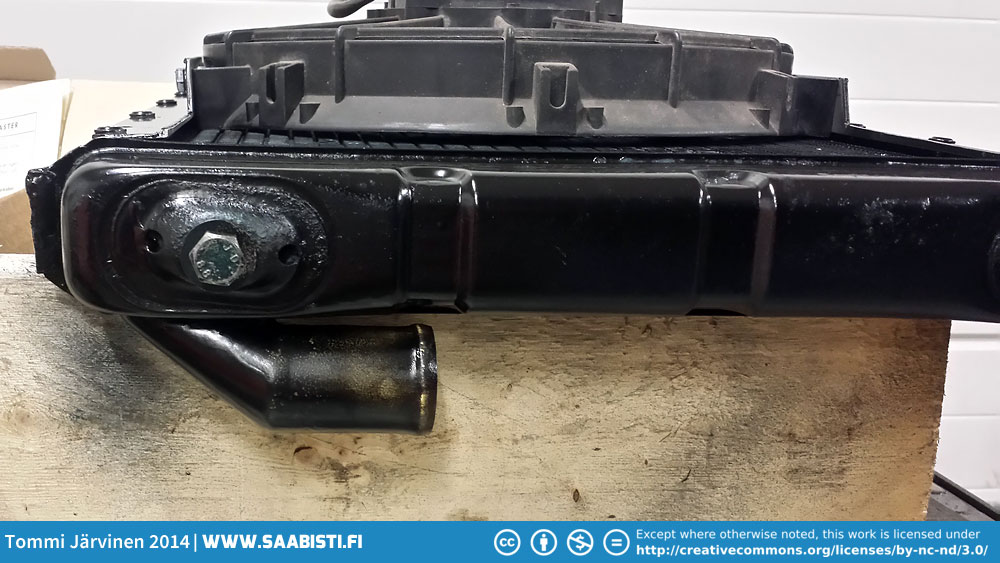

A radiator outlet was removed from a normal V4 radiator and soldered here to point the hose down.
A radiator outlet was removed from a normal V4 radiator and soldered here to point the hose down.

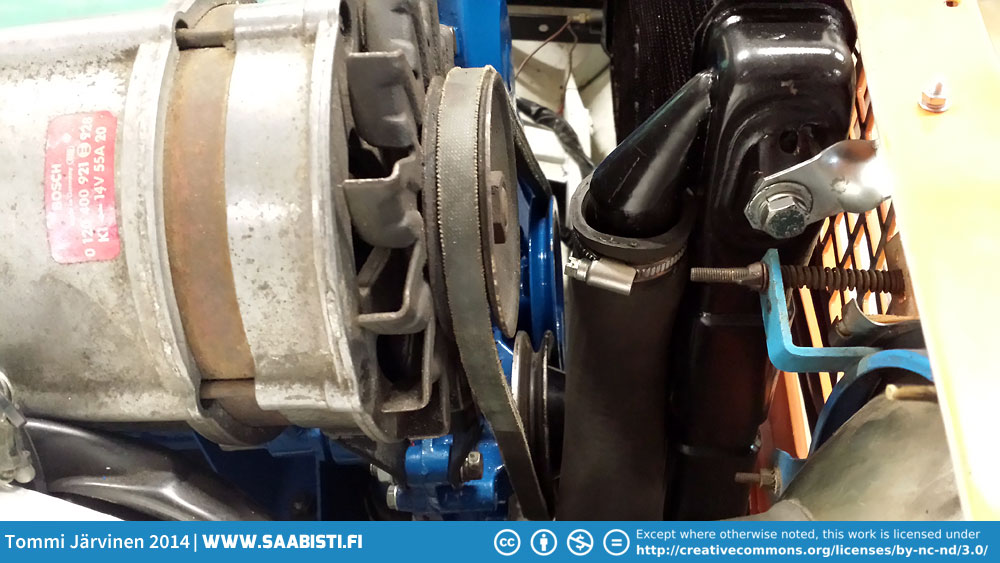

It's still a tight spot even with the outlet pointing down.
It’s still a tight spot even with the outlet pointing down.

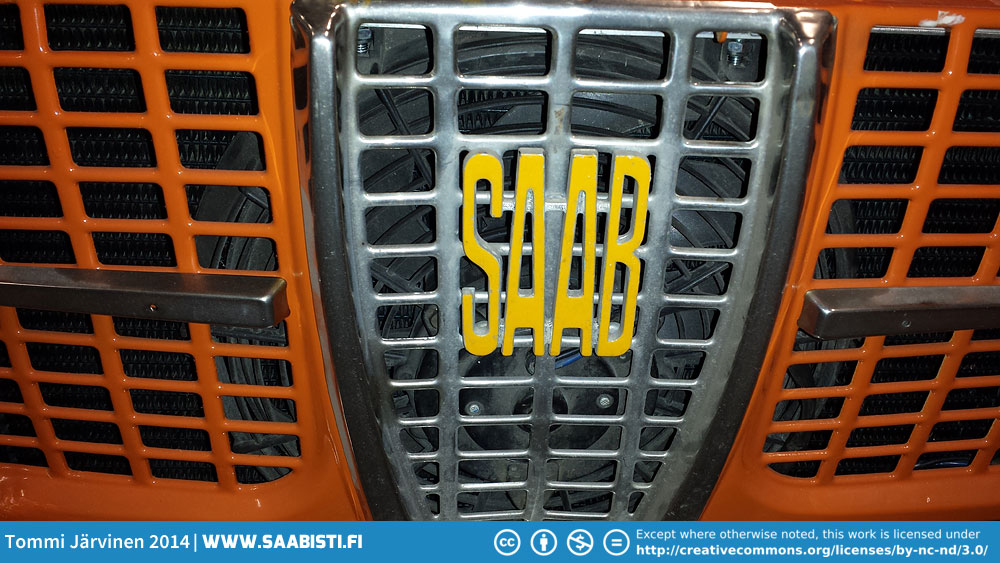

Electric fan fits just behind the mask.
Electric fan fits just behind the mask.
The Saab 99 radiator in place. We still need to make some changes to the fittings.
The Saab 99 radiator in place. We still need to make some changes to the fittings.

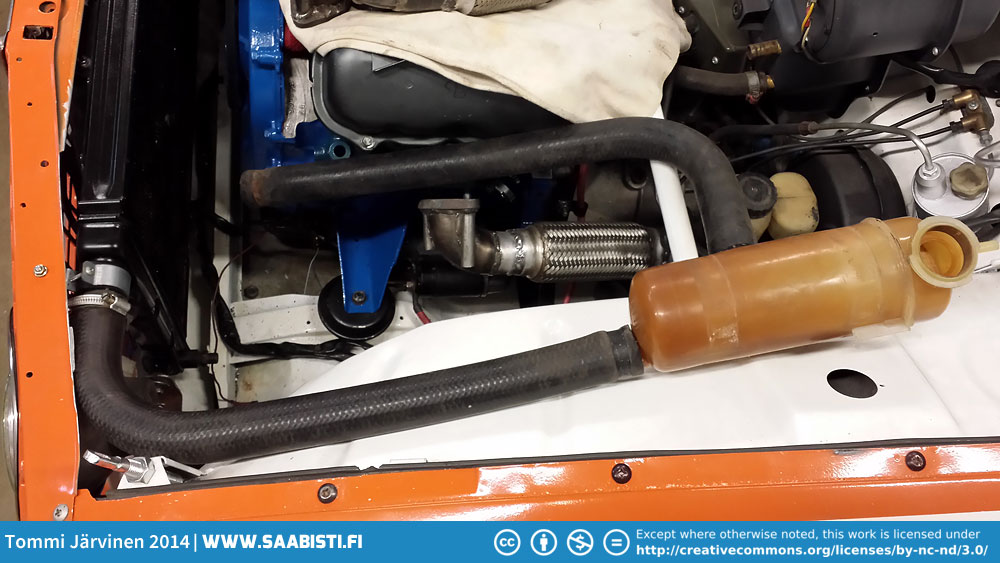

The inlet side. The reservoir will be positioned just about here. It's also from Saab 99.
The inlet side. The reservoir will be positioned just about here. It’s also from Saab 99.

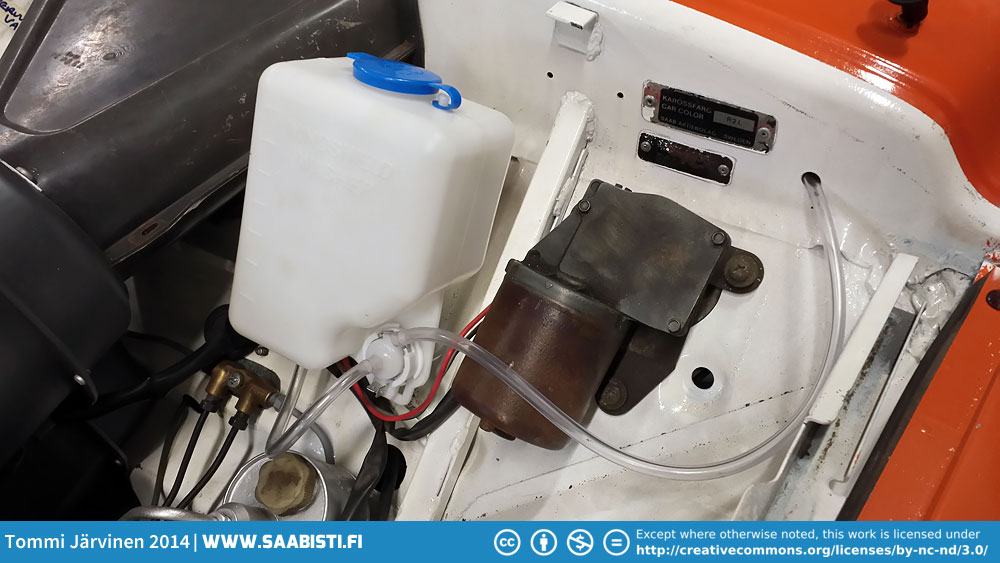

Washer tank and pump.
Washer tank and pump.

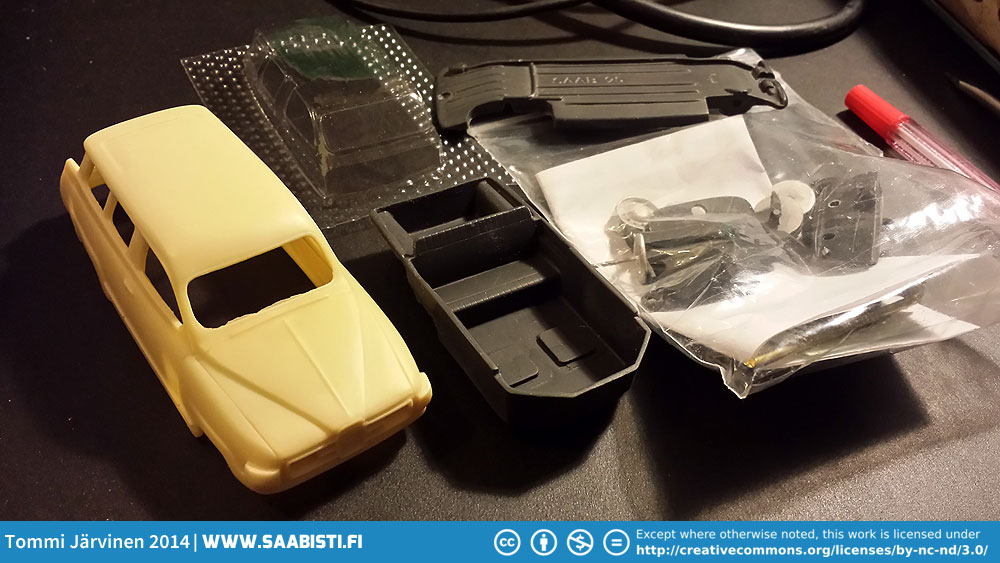

I also got this - a Marpytoys Saab 95 V4 GL 1978
I also got this – a Marpytoys Saab 95 V4 GL 1978

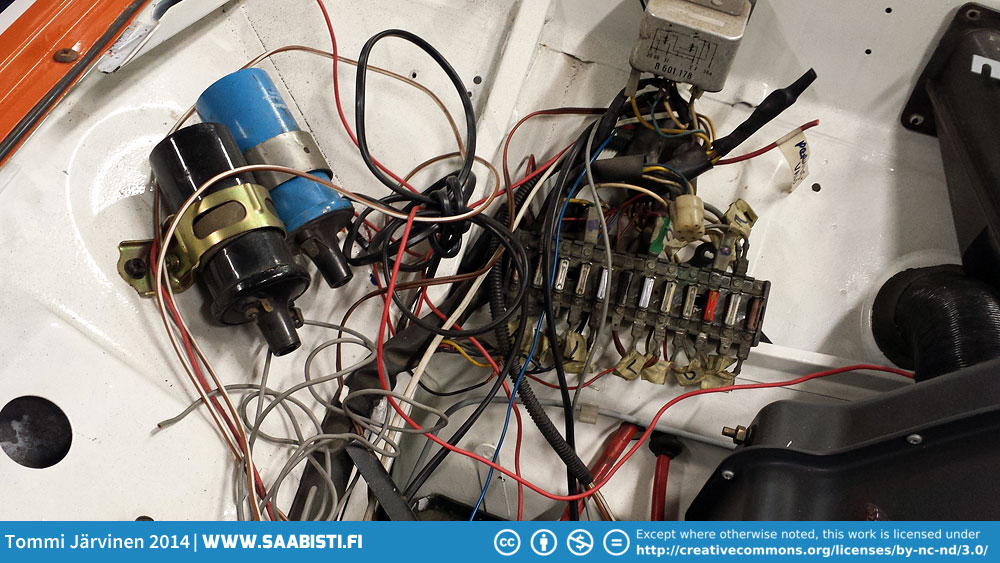

In theory all the wires are marked. So - plug and play :D
In theory all the wires are marked. So – plug and play 😀
